KEXINT 12 Core OM5 Fiber Optic Patch Cord 2.0mm 5M Type B Multimode

Name: KEXINT 12 Core OM5 Fiber Optic Patch Cord 20mm 5M Type B Multimode
Brand: KEXINT
Price: 6.73 USD

China KEXINT 12 Core OM5 Fiber Optic Patch Cord 2.0mm 5M Type B Multimode factory

Brand Name : KEXINT

Model Number : OM5 12 core MTP/pro 5M type B

Certification : CE Iso-9001 Ross UL

Place of Origin : CHINA

MOQ : 10+pcs

Price : 6.73+$+piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram

Supply Ability : 1000+PCS+Day

Delivery Time : 8

Packaging Details : box

Fiber count : 12 Fibers

Fiber Type : Multimode OM5

Polarity : Type B

Jacket : LSZH

Diameter : 2.0mm

Length : 5m or customized

Application : Data Center

Operating temperature : -40℃~85℃

Contact Now

MPO/MTP Trun cable patch cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.

KEXINT provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;

KEXINT 12 Core OM5 Fiber Optic Patch Cord 2.0mm 5M Type B Multimode


Features:
100% pre-terminated and tested in factory to ensure transfer performance
 Rapid configuration and networking, reduce installation time
 Supports 40G and 100G network applications
 Jacket material: LSZH, OFNR, OFNP available
 Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Application:
Data communication network
 Optical System Access network
 Storage area networking fiber channel
 High density architectures


Specification:

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

Product Tags:

Fiber Optic Patch Cord 5M

12 Core OM5 Patch Cord

Type B OM5 Patch Cord

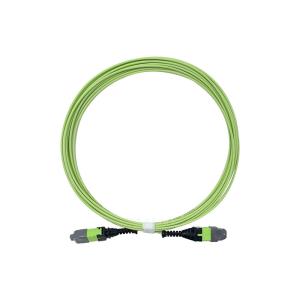

KEXINT 12 Core OM5 Fiber Optic Patch Cord 2.0mm 5M Type B Multimode Images
